Sealing ring classification:

V-shaped sealing ring

It is an axially acting elastic rubber seal ring used as a pressureless seal for the rotating shaft. The sealing lip has better mobility and adaptability, can compensate for large tolerances and angle deviations, can prevent internal grease or oil from leaking out, and can also prevent external splashing water or dust from intruding.

U-ring

Commonly used in the manufacture of reciprocating seals in hydraulic systems. It is widely used in the sealing of hydraulic cylinders in construction machinery.

O-ring

Mainly used for static sealing and reciprocating motion sealing. When used for rotary motion sealing, it is limited to low-speed rotary sealing devices.

Rectangular sealing ring

It is generally installed in a groove with a rectangular cross-section on the outer circle or inner circle to play a sealing role.

Y-ring

Widely used in reciprocating motion sealing devices.

In addition, there is also a spring tension (spring energy storage) sealing ring, which is a spring added to the PTFE sealing material, including O-shaped springs, V-shaped springs, and U-shaped springs.

Hole with YX type sealing ring

Product Usage:
Used for sealing pistons in reciprocating hydraulic cylinders. Scope of application: TPU: general hydraulic cylinders, general equipment hydraulic cylinders. CPU: Hydraulic cylinders for construction machinery and oil cylinders for high temperature and high pressure. Material: polyurethane TPU, CPU, rubber

Product hardness:
HS85±2°A Working temperature: TPU: -40～+80℃ CPU: -40～+120℃ Working pressure: ≤32Mpa Working medium: hydraulic oil, emulsion

YX type hole retaining ring

Product Usage:

This standard applies to the use of YX-type sealing rings when the working pressure of the oil cylinder is greater than 16MPa, or when the oil cylinder is under eccentric force, it plays the role of protecting the sealing ring. Working temperature: -40～+100℃

Working medium:

Hydraulic oil, emulsion, water Product hardness: HS 92±5A Material: PTFE

YX type sealing ring for shaft

Product Usage:
Used for sealing piston rods in reciprocating hydraulic cylinders. Scope of application: TPU: general hydraulic cylinders, general equipment hydraulic cylinders. CPU: Hydraulic cylinders for construction machinery and oil cylinders for high temperature and high pressure.

Material:

Polyurethane TPU, CPU, rubber
Product hardness: HS85±2°A
Working temperature: TPU: -40～+80℃ CPU: -40～+120℃
Working pressure: ≤32Mpa
Working medium: hydraulic oil, emulsion

YX type retaining ring for shaft

Product Usage:

This standard applies to the use of YX-type sealing rings when the working pressure of the oil cylinder is greater than 16MPa, or when the oil cylinder is under eccentric force, it plays the role of protecting the sealing ring. Working temperature: -40～+100℃

Working medium:

Hydraulic oil, emulsion, water Product hardness: HS 92±5A Material: PTFE According to: enterprise standard

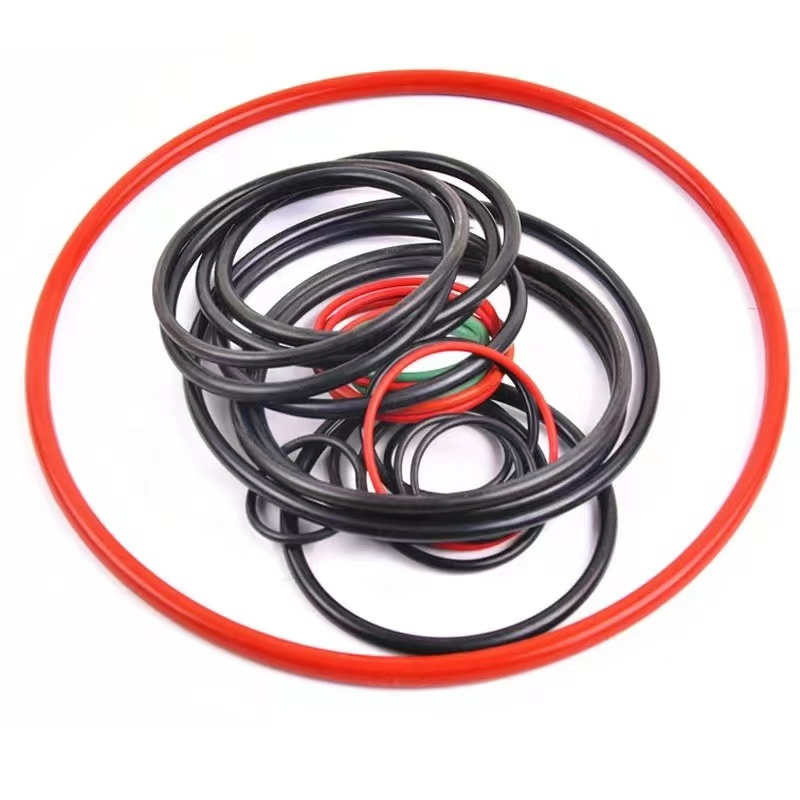

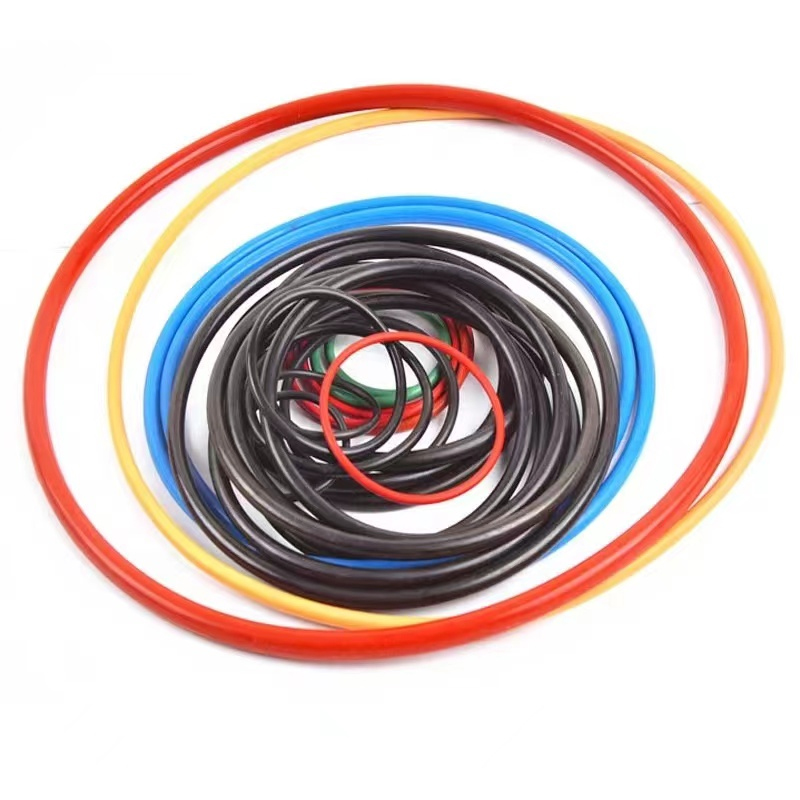

O-ring rubber seal

Product Usage:

The O-shaped rubber sealing ring in this standard is suitable for hydraulic and pneumatic systems and various mechanical equipment and components.
In the liquid and gas medium, it acts as a seal in a static or moving state. Working temperature: -40～+230℃ Working pressure:<10～220Kg, f/cm

Working medium:

Air, water, oil Product hardness: 40～85±2A Material: nitrile rubber, silica gel, fluorine rubber, ethylene propylene rubber

Back-up rings for O-rings

Product Usage:

This standard applies to the use of O-rings when the cylinder pressure is greater than 10MPa. Working temperature: -100～200℃

Working medium:

Hydraulic oil, emulsion, water Material: PTFE

J type frameless dust ring

Product Usage:

Used for reciprocating motion oil cylinders, piston rods in cylinders or exposed parts of valve stems to prevent dust.

Scope of application:

TPU,construction machinery, general machinery, cylinders and various valves, etc.
