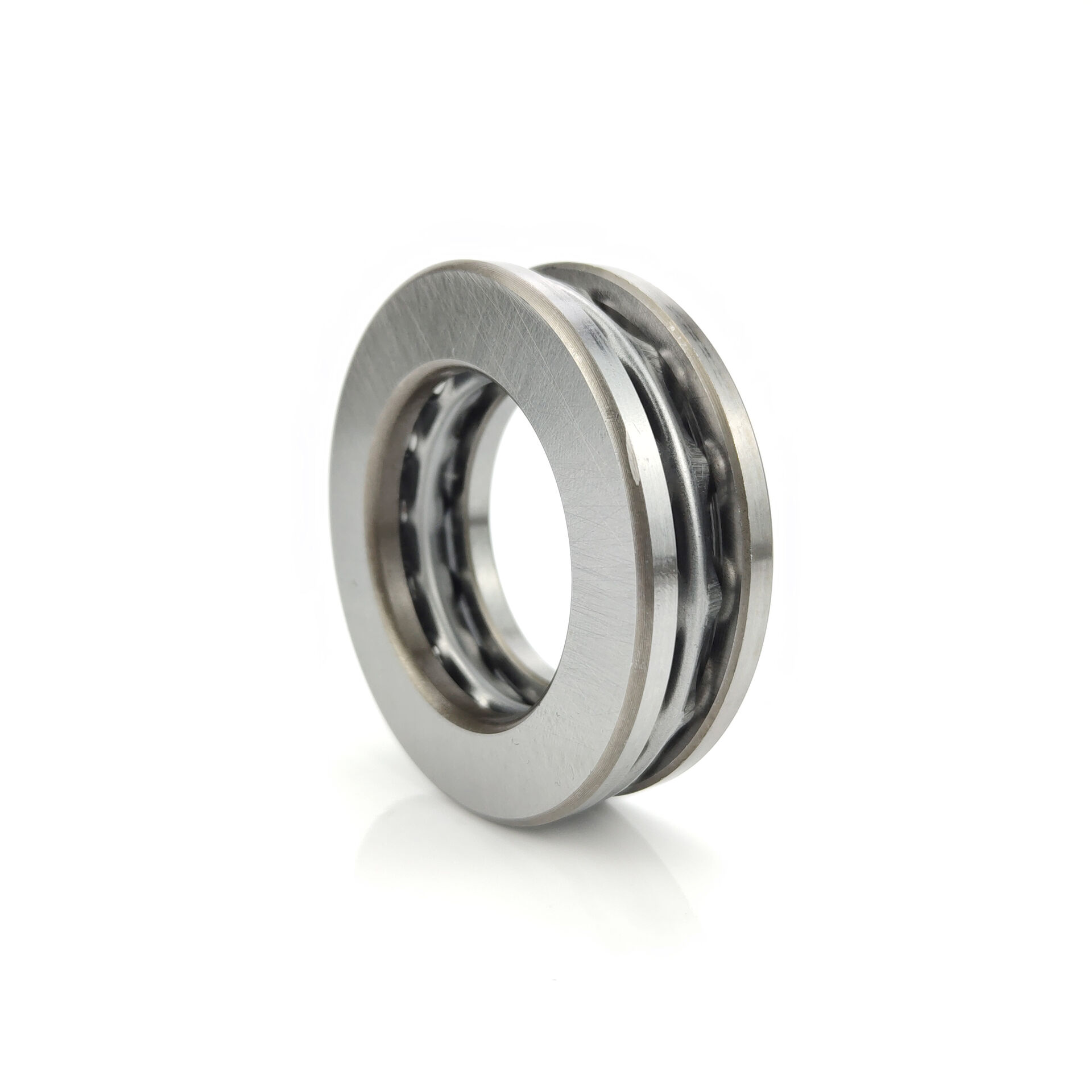

Thrust ball bearings are designed to withstand thrust loads during high-speed operation, and consist of washer-shaped rings with raceway grooves for ball rolling. Because the ferrule is cushion-shaped, thrust ball bearings are divided into two types: flat base cushion type and self-aligning spherical cushion type. In addition, this kind of bearing can bear axial load, but cannot bear radial load.

Bearing Structure

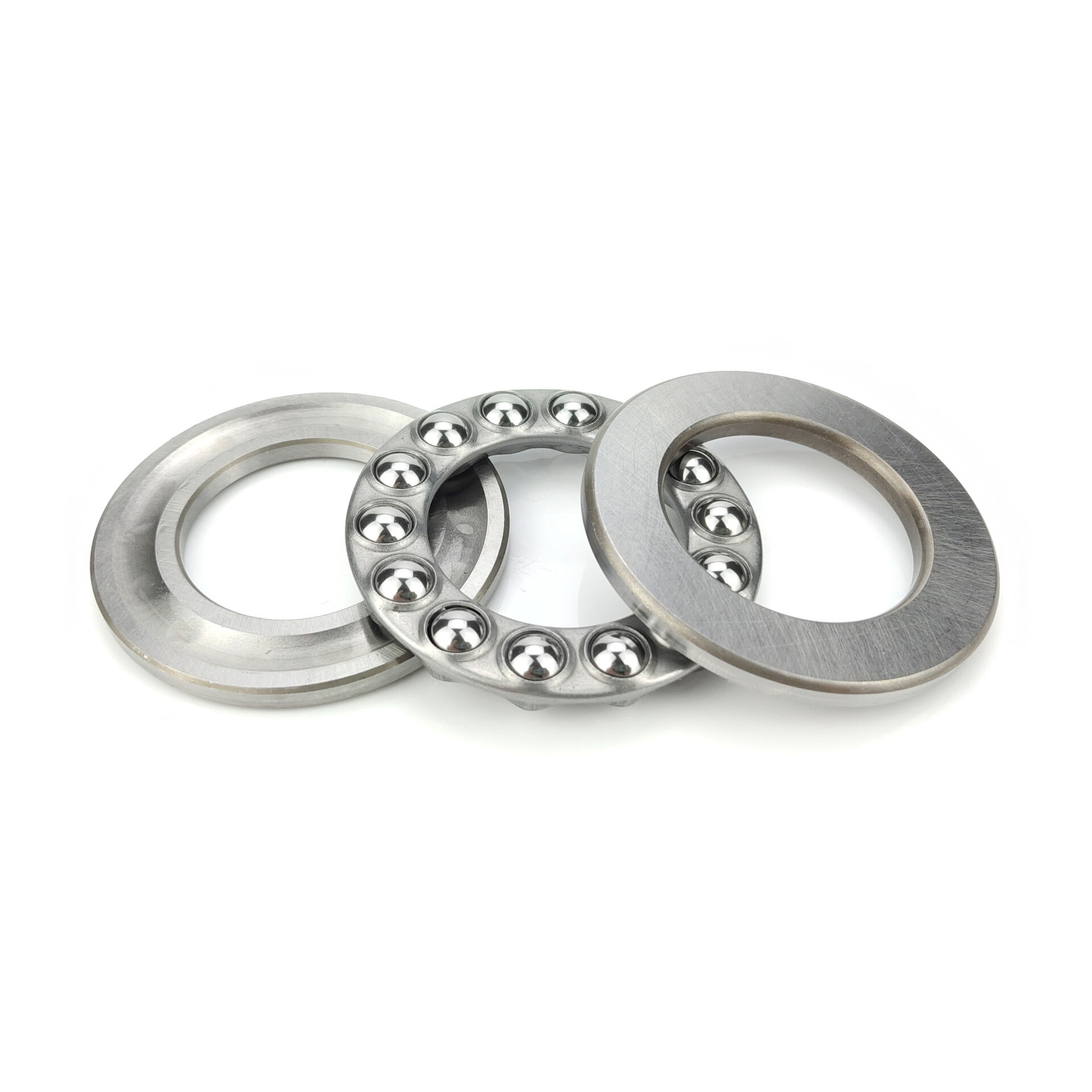

Thrust ball bearing Composition: Thrust ball bearing consists of three parts: seat ring, shaft ring and steel ball cage assembly. The shaft ring matched with the shaft, the seat ring matched with the shell.

Main Application

Application of thrust ball bearings: Only suitable for parts that bear axial load on one side and low speed, such as crane hooks, vertical water pumps, vertical centrifuges, jacks, low-speed reducers, etc. The shaft ring, seat ring and rolling elements of the bearing are separated and can be assembled and disassembled separately.

Installation Method

There are two key points in thrust ball bearing assembly. One is the control of the pressing quality of the cage and the steel ball, and the other is the control of the nominal height T of the bearing after assembly. In addition, because the shaft ring and the seat ring can be separated, it brings a management problem. It is to prevent the mixing of imported bearing parts. The M-type stamping cage uses a flange assembly die. After pressing, the steel ball is required to rotate flexibly in the pocket, but it cannot fall off from the pocket, and the technical regulations check the amount of movement of the steel ball in the pocket. If the embossing of the solid cage is too deep, the amount of movement of the steel ball will be small, and the connection between the raised part of the embossing and the cage is too small and the strength is insufficient, and it is prone to block falling, which will cause the cage to be scrapped. The difference between the inner diameter of the small thrust ball bearing seat ring and the shaft ring is very small, and there is no obvious difference between the two sets. In order to prevent the phenomenon of mixed sets, that is, it is found that both of the assembled set of bearings are seat rings or shaft rings. This requires certain measures. Usually, the auxiliary tooling is used to distinguish the drawing ring and the seat group during assembly, or the inner diameter plug gauge is used to check the inner diameter size before sampling the nominal height. For the convenience of checking the inner diameter, the seat ring is placed on the bottom and the shaft ring is placed on the top. If the inner diameter of the seat ring has obvious quenching and heating oxidation color or has not been ground, it is not necessary to inspect the inner diameter size, and the difference between the shaft ring and the seat ring can be clearly seen, and it is not easy to mix. After the thrust ball bearing is assembled, it is necessary to measure the nominal height T to confirm whether it is qualified. When measuring, calibrate with a height block or a standard part, and measure the load. The bearing needs to rotate dozens of times, and the minimum height must be reached.
